Creating a solid floor structure is critical when laying a new tile floor and there are 2 most common options available, uncoupling membranes and cement board underlayment.

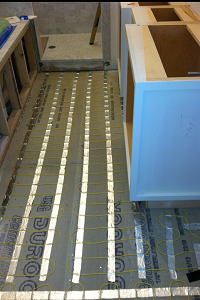

To help you chose what right for your project, we compared the cost and requirements of a typical bathroom installation using a membrane and our QuickHWire loose cable vs. a cement board and our QuickMat system.
Table 1 cost :
| Topic | Membrane | Cement Board | Winner |
|---|---|---|---|
| Kit Cost | $599 | $430 | Cement Board |
| Coverage Area | 43 sqft | 45 sqft | Cement Board |
| Heated floor | 27 sqft | up to 40 sqft | Cement Board |
| Adhesive | $150 | $75 | Cement Board |
| Labor | $200 | $50 | Cement Board |
| Total Cost | $949 | $555 | Cement Board |
Table 2 Material and Preparation :
| Topic | Membrane | Cement Board | Winner |
|---|---|---|---|
| Durability | Flexible not sturdy | Rigid and Stiff | Cement Board |
| Thickness with heating system | 1/4 inch and up | 3/8 inch and up | Membrane |
| Thickness Adjustment | After the first 1/4 inch | After the first 3/8 inch | Membrane |
| Made From | Polyethylene | Cement, fiberglass, reinforcing fibers | Cement Board |
| Space Use | Narrow Areas | Any Size Space | Cement Board |
Table 3 Installation :
| Topic | Membrane | Cement Board | Winner |
|---|---|---|---|
| Installation Requirements | Mortar To Subfloor | Screws | Cement Board |
| How To Cut | Scissors or Utility Knife | Utility Knife | Same |
| Tile Adhesion | Anchored to Membrane Surface Pattern | Chemical Bond to Cement Board Surface | Cement Board |
| Type Of Mortar | Modified and Unmodified Thinset Required | Thinset Mortar | Cement Board |
| Curing Time Needed Before Tiling | 18-24 hours | None | Cement Board |

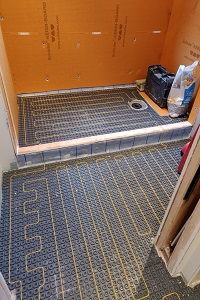

- Ditra Panel With QuickHWire - Ditra Panel With Quick Wire easy to shape with the highest output on the market Ditra Panels are a popular way to add longevity to a tile floor structure. Using the combination of our high output wire with these uncoupling panels creates an easy system for incorporating heat and strength to a tile floor when installing over a wood subfloor.
- Strata Panel With QuickHwire - Strata Panel With QuickHwire easy to shape with the highest output on the market Strata Panels are a thinner panel designed for use when floor height is also a consideration along with uncoupling over a wood subfloor. Our high output wire is engineered to fit easily with these panels lower height allowance and the panel’s hydration vents allow for faster drying of the tile adhesive so you can get the job done more quickly.
- Provo Panel with QuickHWire - Provo Panel With QuickHwire easy to shape with the highest output on the market Provo Panels fabric backing sets it apart from other membranes available. It is intended to allow for a stronger bond while still allowing movement without it affecting the tile surface. It can also create a thermal barrier to make our QuickHWire more efficient.
- Prodeso Panel With QuickhWire - Prodeso Panel With Quick Wire easy to shape with the highest output on the market Prodeso Panels have a unique square design to hold the QuickHWire in place while distributing weight applied more evenly to the subfloor. Using the combination of our high output wire with these uncoupling panels creates a strong floor able to apply heavy loads more evenly to the wood subfloor to prevent flexing and keep the floor surface protected from cracks.
